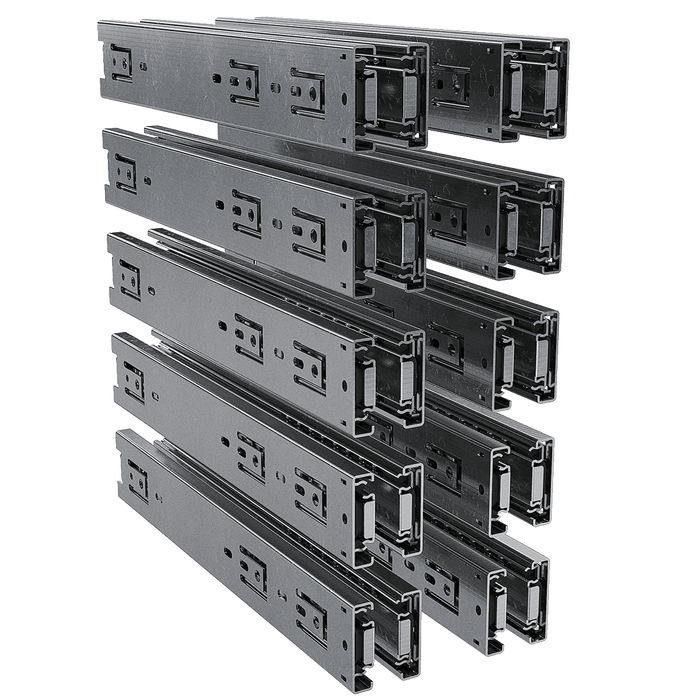

• angled left view of 10-pair pack of 16-inch steel drawer slides

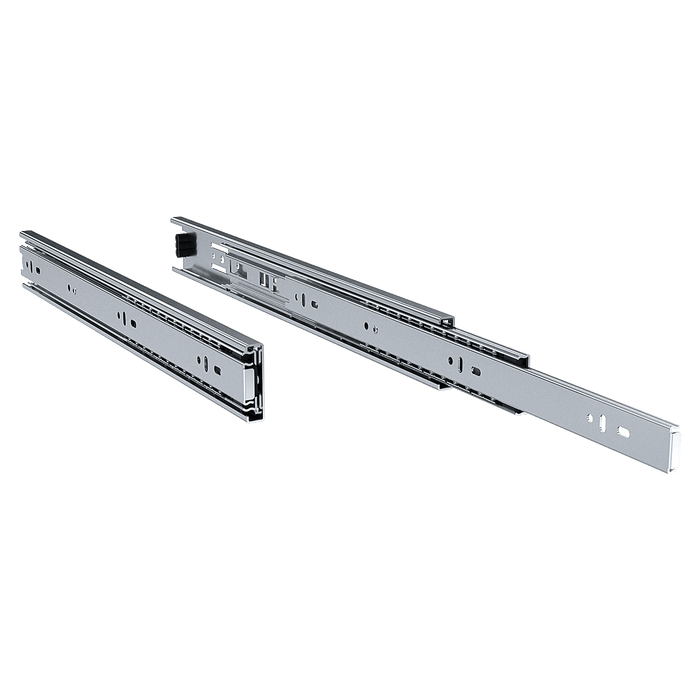

  • angled left view of one steel full-extension 16-inch drawer slide pair

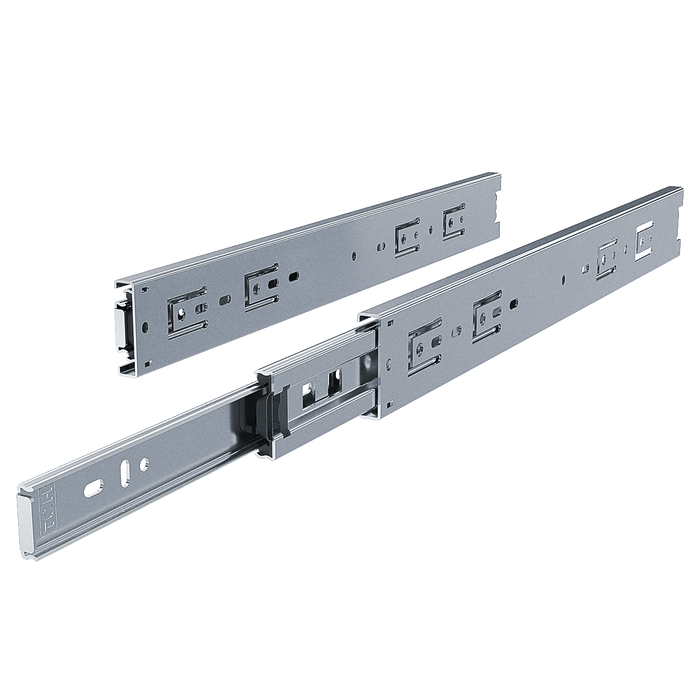

  • angled right view of one steel full-extension 16-inch drawer slide pair

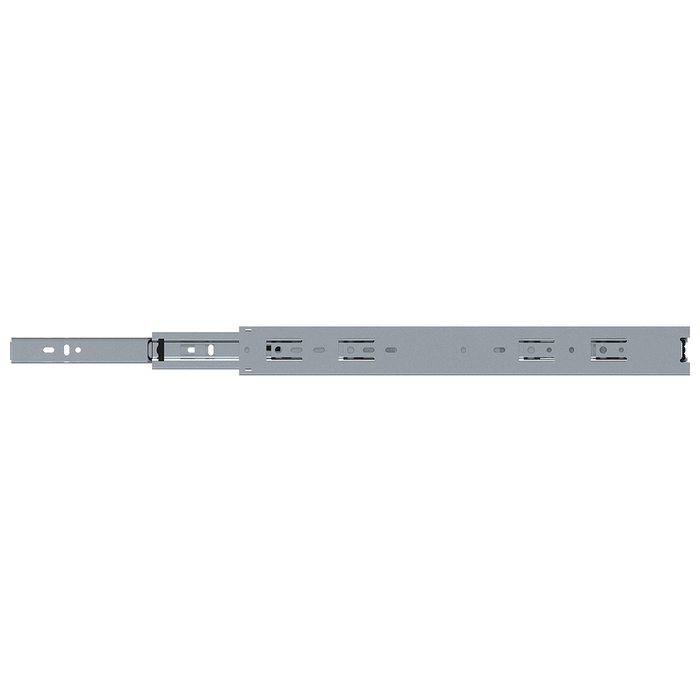

  • right side view of single 16-inch ball-bearing slide

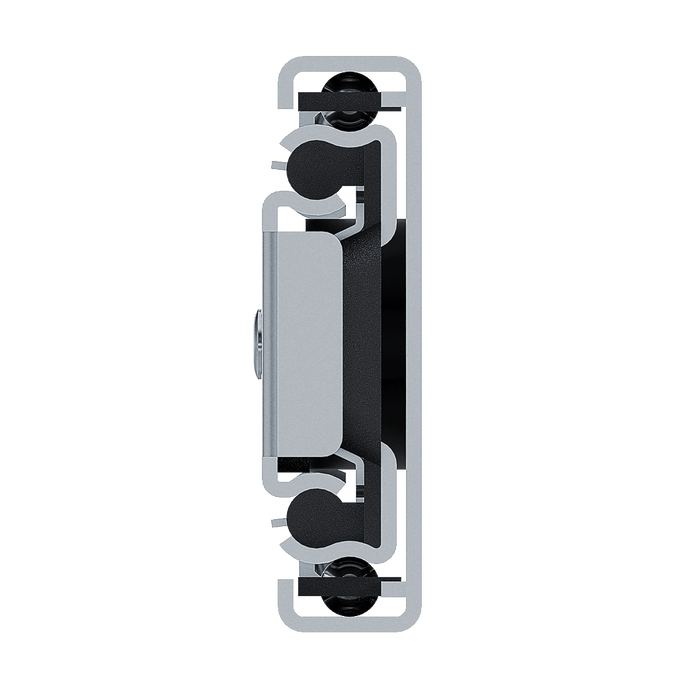

  • front view of a single full-extension drawer slide

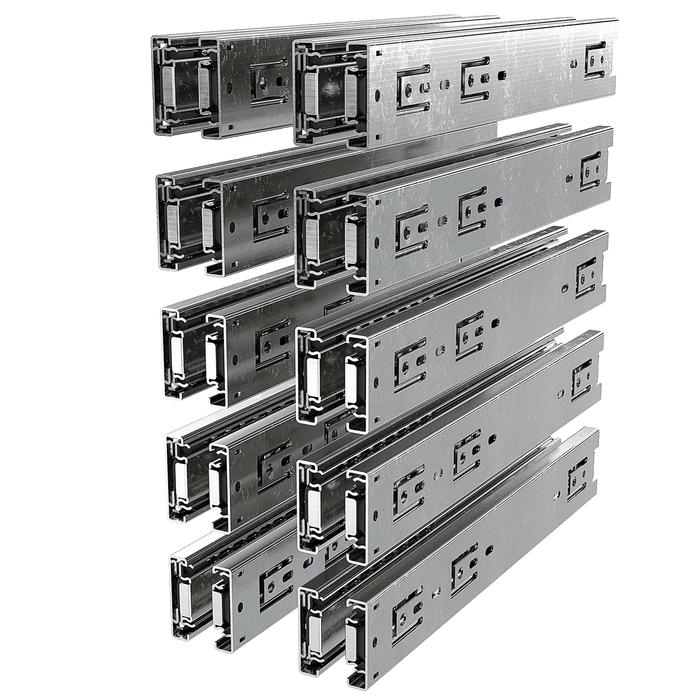

  • Angled right view of 10-pair bundle of 16-inch ball-bearing drawer slides
1 6

TCH

10-Pairs of 16-inch 100 Lbs Steel Full-extension Ball-bearing Drawer Slides Bundle

10-Pairs of 16-inch 100 Lbs Steel Full-extension Ball-bearing Drawer Slides Bundle

R$ 41,16 BRL
R$ 51,45 BRL R$ 41,16 BRL
Sale Sold out
Shipping calculated at checkout.
Size
  • 10 Pairs of 16in drawer slides - 100 lb load rating per pair.
  • Drawer slide profile is 1/2in wide x 1-7/8in tall.
  • 3-stage, full-extension steel draw slides with Zinc coating for corrosion resistance.
  • Quick release allows the mechanism to be separated for installation and removal.
  • 10-pack drawer slides ship via ground freight within the 48 contiguous states. This item is not eligible for free shipping.
  • MFG Item No: 520-1645BL10800
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Size: 16"
  • Width: 0.50in [12.7mm]
  • Height: 1.79in [45.5mm]
  • Depth: 16.00in [406.4mm]
  • Weight: 2.66lb [1.2 kg]
  • Load Capacity: 100.00 lb [45.4 kg]
  • Country of Origin: China
  • Package Quantity: 10
  • Package Type: Box
    • PDFPDF Drawing
    DXFDXF File
    URL3D CAD Link
    PDFData Sheet
    PDFInstallation Instructions
